Linear guide rail systems are high-precision mechanical assemblies designed to enable smooth, accurate, and low-friction linear motion across various industrial automation applications. By supporting, guiding, and positioning heavy loads with exceptional repeatability, a premium linear guide rail ensures structural rigidity and high-speed operational efficiency in modern CNC machinery, manufacturing processes, and robotic systems worldwide.
What Is a Linear Guide?
Key Components Breakdown
How Do Linear Guides Work?
Types of Linear Guides
Key Specifications Explained
Real-World Applications
How to Select the Right Linear Guide
Installation & Maintenance

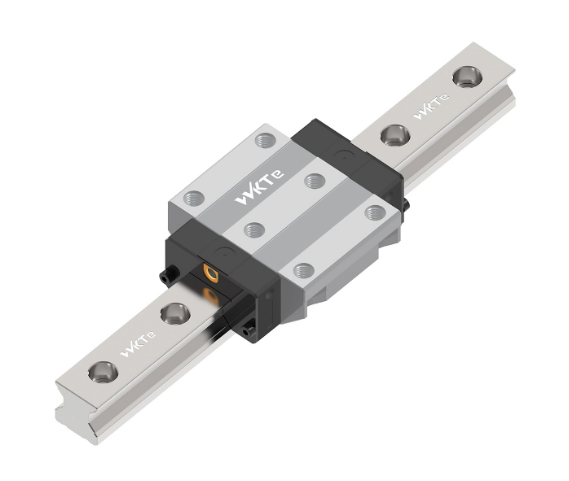

A linear guide rail is a precision-engineered linear motion tracking system consisting of a profiled rail and a matching bearing block that enables smooth mechanical transit along a single axis. Designed to minimize frictional resistance while supporting heavy directional payloads, the linear guide rail provides high rigidity, exceptional repeatability, and geometric accuracy across diverse manufacturing environments.
The foundational purpose of a linear guide rail is to transform sliding friction into precise rolling linear movement. In traditional plain bearings, sliding contact generates significant heat, stiction, and rapid wear, which compromises accuracy over time. By incorporating precisely engineered rolling elements within a linear guide rail framework, industrial machinery can achieve high speeds and continuous operational life cycles without sacrificing position control.
Modern industrial automation relies heavily on the linear guide rail to manage multi-axis configurations. Whether applied in a Cartesian robot, an advanced automated storage system, or high-speed packaging lines, the structural performance of the linear guide rail determines the overall throughput and quality of the output. The design inherently distributes applied structural forces evenly across the supporting machine bed.
Furthermore, integrating a premium linear guide rail solution allows factory engineers to optimize power consumption. Because the coefficient of rolling friction within a linear guide rail is exceptionally low, smaller drive motors and actuators are required to accelerate and decelerate massive payloads. This advantage directly lowers initial capital expenditures and improves long-term energy efficiency across automated industrial production facilities.
High Position Repeatability: The geometric consistency of the linear guide rail ensures micrometric positioning accuracy over millions of continuous travel cycles.
Superb Loading Capacity: The structural profile distributes downward, upward, and lateral moments evenly across the precision-machined steel raceways.
Extended Component Lifespan: Advanced metallurgy and uniform rolling contact minimize structural degradation and fatigue wear on the linear guide rail.
The comprehensive assembly of a high-performance linear guide rail relies on the seamless integration of several precision-machined components including the profiled rail, the rolling element carriage block, internal recirculation caps, and high-efficiency wiper seals. Each part within the linear guide rail system is meticulously optimized to handle multi-directional loads while keeping internal components free from industrial contaminants.
At the center of this mechanical system is the profiled linear guide rail itself. Manufactured from high-strength carbon steel or corrosion-resistant alloys, the linear guide rail features ground raceway grooves that match the curvature of the rolling elements. These grooves are induction-hardened to ensure that the linear guide rail maintains its surface integrity under extreme Hertzian contact pressures over extended periods. A linear guide rail provides vital structural tracking for the entire automation layout.
The bearing block is the mobile carriage that traverses along the linear guide rail track. Inside this block, multiple rows of precision balls or rollers are arranged in distinct circuits. As the block moves down the linear guide rail, these elements roll along the loaded zone and are then guided through plastic end caps into a non-loaded return path, creating a continuous loop within the linear guide rail block structure.
To protect this internal mechanism, a high-quality linear guide rail must feature a comprehensive sealing architecture. End wipers, side seals, and inner seals prevent metal chips, dust, and moisture from infiltrating the ball tracks. Concurrently, these seals retain the vital grease or oil lubrication inside the linear guide rail block, which is delivered via integrated lubrication nipples to prevent metal-on-metal wear.
Component Name |
Primary Material |
Functional Role in Linear Guide Rail |
Profiled Rail |
Hardened Carbon Steel |
Provides the precision ground raceway tracks for linear travel |
Bearing Block |
Alloy Steel / Cast Iron |
Carries the payload and houses the rolling element recirculation loops |
Rolling Elements |
Chrome Steel / Ceramics |
Transmit the heavy forces between the block and the linear guide rail |
Recirculation Caps |
Engineered Polymer |
Guides the balls or rollers smoothly into the return channel path |
End Seals |
Synthetic Rubber |
Prevents dust ingress and seals lubrication within the linear guide rail |
A precision linear guide rail operates by exploiting the mechanics of rolling friction through the continuous recirculation of balls or rollers trapped between a hardened profiled rail track and a mobile carriage block. This configuration allows a linear guide rail to convert heavy sliding friction into smooth rolling motion, providing fluid movement while maintaining extreme directional rigidity along the designated axis.
The exact physics of a linear guide rail center on the geometric conformity between the rolling elements and the raceway grooves. Most linear guide rail designs utilize either a circular arc profile or a Gothic arch profile. When a load is applied to the linear guide rail block, the forces are transmitted at a specific contact angle through the rolling elements directly to the linear guide rail base, neutralizing lateral and vertical structural shifting.
As the carriage moves, the balls or rollers experience load in the active zone of the linear guide rail. Upon reaching the end of the block, they are lifted by a plastic redirection curve and channeled through a parallel return tube inside the block body of the linear guide rail. This continuous circuit ensures that no matter how far the carriage travels along the linear guide rail, the support mechanism remains completely uniform.
Preload is another critical operational principle embedded within high-tier linear guide rail technology. By intentionally installing slightly oversized rolling elements into the linear guide rail block, engineers eliminate internal clearance. This intentional micro-compression increases the initial stiffness of the linear guide rail setup, allowing it to withstand external vibrations and shock loads without deflecting.
Load Distribution: The layout of the ball tracks ensures that downward, upward, and side loads are handled with equal structural rigidity by the linear guide rail.
Low Starting Frictional Force: The rolling contact minimizes stick-slip effects, allowing smooth startup translation even when the linear guide rail supports maximum load capacity.
Micro-Contact Mechanics: Elliptical contact areas in ball-type linear guide rail setups provide an excellent balance between low operational resistance and high loading stiffness.
Industrial linear guide rail variations are classified based on their rolling geometry, profile dimensions, and contact structural designs, which include ball guide rails, heavy-duty roller guides, miniature tracks, and specialized assemblies like the KR roller linear guide rail. Selecting the ideal linear guide rail geometry depends on the specific speed, weight profile, and accuracy requirements of the target manufacturing system.
Ball-type linear guide rail systems are the most popular choice for general automation. They offer exceptionally low frictional coefficients, making them perfect for high-speed, low-noise operations using a linear guide rail. However, for extreme heavy machinery applications, a roller-type linear guide rail is preferred because the line contact of cylindrical rollers provides a significantly higher load-bearing surface area compared to the point contact of balls.
For highly specialized linear tracking, the KR roller linear guide rail provides distinct kinematic advantages. This particular design integrates cam follower or track roller mechanisms into a cohesive structure, offering excellent durability in environments prone to heavy particulate pollution. The KR roller linear guide rail stands out for its high-speed capabilities and ease of alignment on uneven industrial surfaces.
Miniature linear guide rail models cater to electronics manufacturing and medical laboratory tools. These compact linear guide rail systems are constructed from stainless steel to prevent rust and can fit into restricted spaces while delivering sub-micron travel accuracy. Regardless of size, matching the profile type to the operating parameters remains essential for long-term system stability.
Profile Category |
Contact Geometry |
Key Advantage |
Target Application Environment |
Standard Ball Guide |
Point Contact |
Lowest friction, high speed |
Pick-and-place robots, packaging lines |
Heavy Roller Guide |
Line Contact |
Maximum structural rigidity |
CNC machining centers, heavy forging tools |
KR Roller Linear Guide Rail |
Cam Roller Track |
High tolerance to misalignment |
Material handling, industrial automated doors |
Miniature Rail Track |
Micro Point Contact |
Compact footprint, ultra-light |
Semiconductor processing, medical optics |
Evaluating a linear guide rail requires a complete understanding of its technical parameters, which include dynamic load rating, static load capacity, static permissible moment, accuracy grades, and predefined preload levels. These metrics define how a linear guide rail will behave under operational stress, directly influencing the final lifespan, travel velocity, and positional accuracy of the automated machine.
The dynamic load rating signifies the constant load under which a linear guide rail can achieve a nominal travel life of one hundred kilometers without material flaking. Conversely, the static load rating indicates the maximum structural force that a linear guide rail can endure while stationary without causing permanent deformation to the rolling elements or the ground steel track grooves.
Accuracy classes for a linear guide rail are standardized into commercial, high, precision, super-precision, and ultra-precision levels. These grades define the running parallelism between the block mounting surfaces and the linear guide rail reference edges. High precision grades ensure that a linear guide rail maintains tight spatial tolerances, preventing height or width variations during long travel distances.
Preload levels are generally categorized as clearance, normal, light, and medium-heavy. A light preload linear guide rail is ideal for smooth tracking in lightweight conveyor mechanisms, whereas medium or heavy preload options are mandatory for milling machines where cutting forces would otherwise cause structural flexing of the linear guide rail block.
Technical Metric |
Unit of Measure |
Structural Importance for Linear Guide Rail |
Dynamic Load Rating (C) |
Newtons (N) |
Determines the theoretical fatigue lifetime under continuous movement |
Static Load Rating (C0) |
Newtons (N) |
Defines the absolute structural limit to prevent track indentation |
Parallelism Tolerance |
Micrometers (µm) |
Specifies the geometric accuracy along the entire linear guide rail length |
Preload Level (Z0 to Z3) |
Percentage of C |
Dictates the structural stiffness and rigidity of the bearing carriage |
The deployment of a heavy-duty linear guide rail spans across numerous industrial sectors, proving vital for CNC milling machinery, semiconductor handling systems, automotive assembly lines, robotic arms, and complex medical imaging systems. Because a linear guide rail offers high load management and micro-positioning capabilities, it forms the backbone of modern structural precision engineering.
In CNC machining centers, the linear guide rail must withstand immense cutting forces and extreme axis accelerations. The continuous force of a milling tool requires a rigid linear guide rail layout to prevent chatter marks on the workpiece. By using parallel linear guide rail setups on the X, Y, and Z axes, the machine maintains micron-level tool paths under heavy loads.
The semiconductor fabrication sector utilizes non-magnetic, corrosion-resistant linear guide rail systems inside cleanroom environments. These specialized linear guide rail tracks operate with specialized low-outgassing lubricants to prevent contamination of silicon wafers. The high-precision linear guide rail ensures that robotic pick-and-place heads position microchips with absolute spatial perfection.
Additionally, in logistics and automated storage systems, large-scale linear guide rail assemblies facilitate rapid transport of heavy goods. Palletizing robots and warehouse shuttles use a robust linear guide rail configuration to move heavy materials quickly between storage bays, enhancing factory distribution efficiency and minimizing downtime caused by tracking errors.
Aerospace Assembly Jigs: Large-scale linear guide rail networks guide automatic drilling heads over curved aircraft wing skins with zero angular error.
Medical CT Scanners: Ultra-quiet linear guide rail designs slide heavy scanning gantries smoothly around patients, ensuring image clarity.
Automated Laser Cutters: High-acceleration linear guide rail modules move the optical laser head rapidly across sheet metal layouts without vibration.
Selecting the perfect linear guide rail involves a rigorous engineering evaluation of the maximum expected payload, travel speed, acceleration rates, ambient temperature, and understanding exactly how much weight can a linear rail support under both static and dynamic operating conditions. Miscalculating these physical factors can lead to rapid mechanical failure, positioning inaccuracies, or excessive structural wear on the linear guide rail assembly.
The first step in the selection process is to calculate the acting forces on each individual linear guide rail block. This requires assessing not only the static weight of the payload but also the dynamic inertia forces generated during rapid acceleration phases. Knowing how much weight can a linear rail support helps engineers determine whether a compact ball guide is sufficient or if a larger roller linear guide rail is required.
Environmental conditions play an equally vital role in your linear guide rail selection. If the system operates in a high-humidity environment or is subjected to chemical washdowns, a stainless steel or surface-coated linear guide rail is mandatory. Chrome plating or fluoropolymer coatings can protect the steel linear guide rail from rust, extending its life in harsh operating conditions.
Finally, the stroke length and available installation space must be checked against standard catalog dimensions. For long-stroke applications, multiple linear guide rail sections must be butt-jointed with precision factory-ground ends. Ensuring that the linear guide rail blocks can pass smoothly over these structural joints requires meticulous alignment during the machine assembly phase.
Define Operating Metrics: Document the total payload weight, maximum stroke travel distance, target velocity, and required acceleration profile.
Calculate Moment Forces: Evaluate the pitch, roll, and yaw moments applied to the linear guide rail carriage during dynamic movement.
Verify Weight Support: Reference engineering documents to confirm how much weight can a linear rail support based on the selected size.
Choose Seals and Lubrication: Match the end wiper configuration and grease type to the cleanroom or debris-heavy factory environment.
Rail Size Category |
Typical Dynamic Capacity (N) |
Typical Static Capacity (N) |
Load Profile Suitability |
Miniature Rails (7-15mm) |
1,000 to 5,000 |
1,500 to 8,000 |
Light lab instruments, micro-robotics |
Standard Rails (15-35mm) |
10,000 to 50,000 |
15,000 to 80,000 |
Packaging automation, 3D printing, laser cutters |
Heavy-Duty Rails (45-65mm) |
70,000 to 180,000 |
110,000 to 300,000 |
CNC milling gantries, heavy material handling |
The long-term reliability and performance of a precision linear guide rail depend on precise installation practices and strict adherence to a scheduled lubrication maintenance routine. Even a top-tier linear guide rail will experience premature wear, binding, or loss of accuracy if it is mounted onto an uneven surface or starved of proper lubricating grease.
During the installation phase, the master linear guide rail must be pressed firmly against the machined reference shoulder of the bed before tightening the mounting bolts. A calibrated torque wrench must be used to tighten the bolts in a progressive zigzag pattern. This prevents inducing internal stress or wave-like distortions along the linear guide rail track, ensuring uniform movement.
Once the master linear guide rail is secured, the subsidiary rail must be aligned perfectly parallel to it. This can be achieved using dial indicators or by moving the carriage bridge smoothly between the two rails to self-align the secondary linear guide rail before final torque application. Any parallelism errors will cause increased friction and accelerate wear on the internal rolling elements.
Maintenance centers on consistent lubrication intervals. Grease should be injected into the linear guide rail block via the lubrication nipple every hundred kilometers of travel or every six months, depending on use. For high-speed applications, automated oil mist systems can be connected directly to the linear guide rail blocks to ensure continuous lubrication film retention.
Regular Visual Inspection: Check the entire linear guide rail length weekly for metal debris, scoring marks, or signs of dry friction.
Bolt Torque Verification: Periodically re-check the mounting bolt torques on both the linear guide rail and the bearing block to prevent loosening.
Contaminant Removal: Clean old contaminated grease from the linear guide rail tracks before applying a fresh layer of industrial lubricant.
In summary, selecting, installing, and maintaining the right linear guide rail is a fundamental requirement for optimizing modern automated machinery. From understanding the core mechanical principles to implementing specialized solutions like the KR roller linear guide rail, engineers must pay close attention to structural parameters and environmental factors. By ensuring proper alignment and knowing how much weight can a linear rail support, industrial facilities can achieve exceptional positioning precision, low-friction linear motion, and an extended operational life cycle for their automated systems.
