A linear guide, also known as a linear motion guide or LM guide, is a critical mechanical component designed to support and guide a carriage or block in a precise linear path. It utilizes rolling elements—typically balls or rollers—to transform sliding friction into rolling friction, allowing for smooth, high-speed, and high-load capacity movement with extreme accuracy.
Understanding the nuances of these systems is essential for engineers and procurement specialists looking to optimize machine performance. In the following sections, we will explore the intricate design, historical evolution, and diverse applications of linear motion technology. From the basic structure to the complex physics behind their load capacities, this guide provides a comprehensive overview of how Linear Guide Rails drive modern innovation.
Section | Summary |
Terminology and Difference from Rotary Bearings | Explains the fundamental definitions of linear guides and how they differ from traditional rotary bearings in terms of motion direction and load distribution. |
Structure of the LM Guide | Details the physical components, including the rail, carriage, rolling elements, and seals that make up a complete linear system. |
History of the LM Guide | Traces the evolution of linear motion from early sliding bushes to the high-precision rolling systems used in industry today. |
Linear Guide Applications | Highlights the diverse industries—from medical to aerospace—where linear motion guides are indispensable for precision. |
Linear Guide Mechanism | Breaks down the physics of rolling contact, recirculation systems, and how the assembly manages multi-directional loads. |
Linear Guide Characteristics | Discusses the key performance metrics such as high rigidity, low friction, maintenance intervals, and accuracy grades. |
A linear guide is a system designed to facilitate translational motion along a straight axis, whereas a rotary bearing is designed to support a shaft rotating around a fixed point.
While both components share the goal of reducing friction through rolling contact, the geometry of their operation is fundamentally different. In a rotary bearing, the centrifugal forces and load vectors are generally radial or axial relative to a circle. In contrast, a Linear Guide Rail must manage loads that can come from any direction—downward, upward, or lateral—while maintaining a perfectly straight trajectory over several meters of travel.
Terminology in this field can be varied. You may hear these systems referred to as linear slides, linear ways, or profile rails. Regardless of the name, the primary distinction remains the "infinite" travel capability. While a rotary bearing is limited by the circumference of its races, a linear system can theoretically be extended indefinitely by joining rail sections together, provided the carriage can transition smoothly between them.
Furthermore, the contact area in a linear guide is optimized for stability. While a rotary bearing often deals with point or line contact in a circular race, linear guides utilize specific groove profiles (like circular arc or Gothic arch) to ensure that even under high vibrations, the system remains seated. For those looking for specialized solutions, the KR Roller Linear Guide Rail offers a unique take on these principles by utilizing rollers to handle even more demanding load profiles than standard ball-based systems.

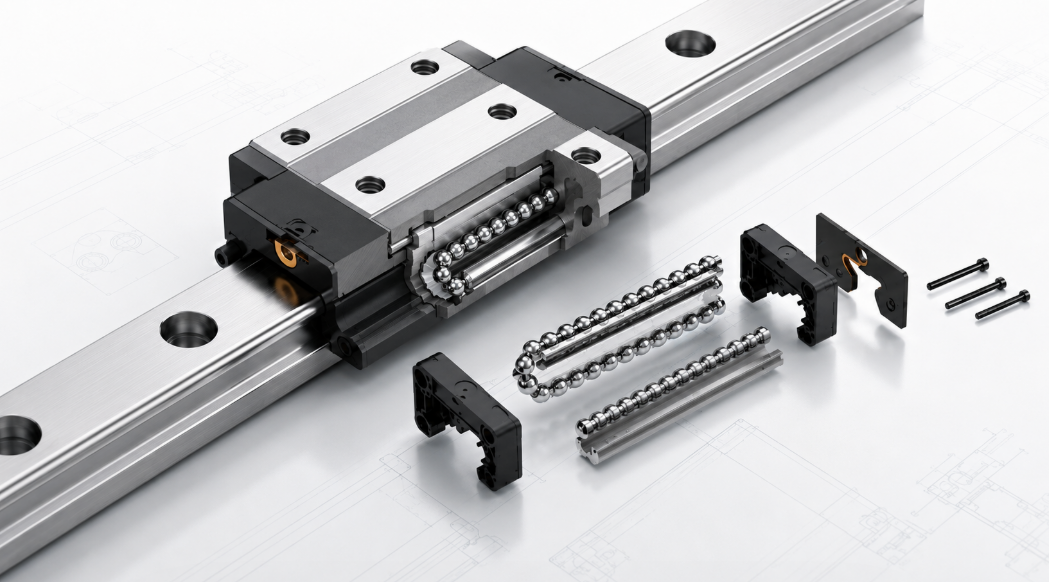

The structure of a standard linear guide consists of a precision-ground rail, a bearing carriage (or block), rolling elements (balls or rollers), a recirculation cap, and integrated sealing components.
The rail serves as the foundation of the system. It is typically manufactured from high-strength carbon steel or stainless steel and features precision-ground raceways. These raceways are the paths along which the balls or rollers travel. The quality of the grinding on these rails directly dictates the accuracy and smoothness of the entire machine. Without a perfectly straight and hardened rail, the carriage would suffer from premature wear or "chatter" during high-speed operations.
Inside the carriage, the rolling elements are housed in a specialized recirculation system. As the carriage moves, the balls roll between the rail and the carriage's internal grooves. When they reach the end of the load-bearing zone, a plastic end cap deflects them into a return path, allowing them to loop back to the start of the zone. This "infinite" recirculation is what allows the carriage to travel the entire length of the rail without stopping.
Protection is the final key structural element. Because linear guides are often used in environments with dust, metal chips, or coolant, they are equipped with end seals and side seals. These components keep contaminants out of the ball tracks and keep lubrication in. At Weikente, we emphasize the importance of structural integrity to ensure long-term reliability in harsh industrial settings. High-quality seals and reinforced end caps are standard features that prevent the catastrophic failure of the internal rolling elements.
The history of the linear guide reflects the industrial shift from simple sliding contact (plain bearings) to the invention of the rolling-element linear guide in the 1970s, which revolutionized precision manufacturing.
Before the development of modern linear motion guides, machinery relied on "dovetail" slides or box ways. These systems involved two metal surfaces sliding directly against each other, separated only by a thin film of oil. While these were sturdy, they suffered from high "stick-slip" friction. This meant that a large amount of force was required to start the movement, leading to jerky motions and a lack of precision in micro-positioning.
The breakthrough came with the integration of recirculating ball technology. By incorporating the same ball-bearing principles that had perfected rotary motion, engineers were able to reduce friction coefficients by up to 90%. This allowed for the creation of the first CNC (Computer Numerical Control) machines, which required the high-speed, repeatable movements that only a rolling Linear Guide Rail could provide.
Throughout the late 20th century, the technology evolved to include different groove geometries and roller-based systems. Roller guides were developed to provide higher rigidity for heavy-duty cutting tools. Today, the focus has shifted toward miniaturization and "smart" guides with integrated sensors. As we look at the legacy of these components, it is clear that every advancement in automation has been preceded by an advancement in the ability to move parts accurately in a straight line.
Linear guides are utilized in any application requiring high-precision linear movement, ranging from massive industrial CNC machining centers to delicate medical laboratory equipment.
The most common application is in the machine tool industry. Milling machines, lathes, and grinders use linear guides to position the cutting tool or the workpiece. In these environments, the guides must withstand heavy cutting forces while maintaining sub-micron accuracy. The rigidity of the system ensures that the tool does not deflect under pressure, which is vital for maintaining tight tolerances in aerospace and automotive manufacturing.
In the electronics and semiconductor industry, linear guides facilitate the rapid movement of pick-and-place robots. These machines move at incredible speeds, often accelerating at several Gs. Here, the low friction and low weight of the carriage are the most critical factors. Similarly, in the medical field, linear motion systems are found in MRI machines and CT scanners, where quiet and smooth movement is necessary for patient comfort and image clarity.
Factory Automation: Conveyor systems, robotic arms, and automated storage and retrieval systems (ASRS).
Transportation: Sliding doors on trains and precision adjustment of seats in high-end automotive designs.
Cleanroom Environments: Semiconductor fabrication where specialized lubrication and stainless steel guides prevent contamination.
Packaging: High-speed filling and labeling machines that require 24/7 reliability.
When selecting a guide for these varied tasks, it is important to calculate the load requirements. For instance, knowing how much weight can a linear rail support is the first step in ensuring the safety and longevity of an industrial application.
The mechanism of a linear guide relies on the principle of rolling contact via recirculating balls or rollers to provide smooth, low-friction motion while supporting loads from multiple directions.
The core of the mechanism is the contact between the rolling element and the raceway. Most modern guides use a "Gothic Arch" or "Circular Arc" groove design. This design ensures that the balls have two to four points of contact with the rail and carriage. This multi-point contact allows the guide to handle "moment loads"—which are forces trying to twist or tilt the carriage—without the balls skidding or deforming the races.
The recirculation process is a marvel of precision engineering. Within the carriage, there are precisely drilled holes that act as return paths. As the carriage moves forward, the balls are "picked up" by a curved plastic or metal scoop in the end cap and routed into these return holes. They then travel to the other end of the carriage and are fed back into the load-bearing area. This creates a continuous loop, ensuring that there is always a full complement of balls supporting the load.
To further enhance the mechanism, many systems utilize a "ball spacer" or "chain." This technology keeps the balls separated from one another, preventing the friction and noise caused by balls bumping into each other. This results in much quieter operation and longer grease life. For heavy-duty applications where ball contact is insufficient, the KR Roller Linear Guide Rail mechanism utilizes cylindrical rollers, which provide a larger contact area (line contact instead of point contact) for significantly higher load capacities.
The key characteristics of a linear guide include high positioning accuracy, exceptional load-carrying capacity, high speed, and low maintenance requirements compared to sliding contact systems.
Accuracy is perhaps the most defining characteristic. Linear guides are manufactured in various "grades," from commercial grade for basic automation to ultra-precision grades for scientific instruments. Because the rolling friction is so low, there is almost no difference between the starting friction and the running friction. This eliminates the "stick-slip" phenomenon, allowing controllers to position a carriage within micrometers without overshooting the target.
Another vital characteristic is rigidity. When a load is applied to a carriage, the rolling elements undergo a tiny amount of elastic deformation. By using "pre-load"—where balls slightly larger than the space between the rail and carriage are used—manufacturers like Weikente can eliminate any internal clearance or "play." This makes the system incredibly stiff, which is essential for heavy machining where the tool must remain perfectly steady despite the forces of the cut.
Finally, the durability of these systems is a major advantage. With proper lubrication, a Linear Guide Rail can travel thousands of kilometers before showing signs of wear. The ability to easily replace just the carriage or the rail (in interchangeable systems) adds to the cost-effectiveness of the technology. When designing a system, one must always refer to the manufacturer's specs regarding how much weight can a linear rail support to ensure the characteristics of the rail match the demands of the environment.
Characteristic | Ball-Type Linear Guide | Roller-Type Linear Guide | Plain Sliding Guide |
Friction | Very Low | Low | High |
Load Capacity | High | Very High | Medium |
Speed Capability | Very High | High | Low |
Rigidity | High | Extreme | High |
Positioning Accuracy | High | High | Low/Medium |
In summary, the linear guide is an indispensable component in the world of modern mechanical design. By transforming sliding motion into rolling motion, these components enable the high speed, extreme precision, and heavy load capacities required by today's automated industries. From the structural integrity of the rail and carriage to the sophisticated physics of the recirculation mechanism, every aspect of a Linear Guide Rail is engineered for performance.
Whether you are building a custom 3D printer or a multi-axis CNC machining center, choosing the right linear motion system is crucial. Weikente (https://www.weikente.com) continues to lead the way in providing high-quality, durable linear solutions that meet the rigorous demands of global manufacturing. By understanding the history, applications, and mechanical characteristics of these systems, you can ensure your project achieves the highest standards of reliability and accuracy.
