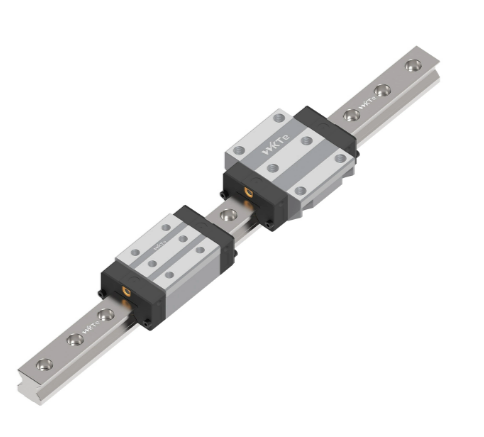

Linear Guide Rails Selection – Where to start?

To start selecting linear guide rails, you must first define your application requirements by analyzing existing industry standards for similar machinery, calculating precise static and dynamic loads, determining the required service life in kilometers of travel, and evaluating the environmental conditions to choose the appropriate rail size and manufacturer specifications.

This guide provides a comprehensive roadmap for navigating the complexities of linear motion selection. By following a structured five-step approach, you will move from broad conceptual assessment to technical calculations and final procurement. Whether you are building a CNC router, a medical laboratory instrument, or a high-speed packaging line, the following sections will help you optimize performance and cost-effectiveness.

Selection Overview and Summary

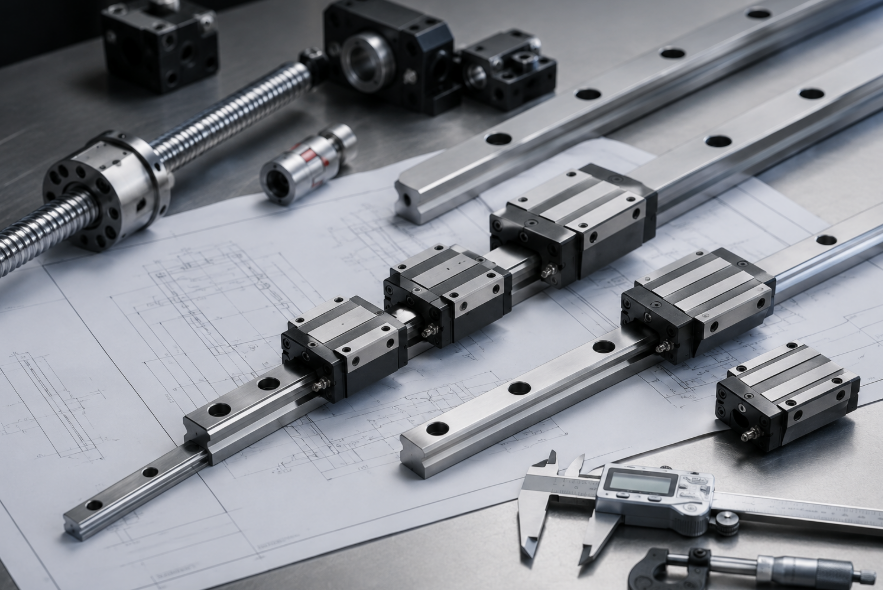

1.) Check what linear guide rails are used in similar machines

The most effective starting point is to investigate the types and sizes of linear guide rails currently employed in machinery with similar functions, speeds, and load profiles to establish a proven technical baseline.

When embarking on a new project, you do not have to reinvent the wheel. Analyzing similar machines in your industry provides immediate insight into what works. For instance, if you are designing a 3D printer, looking at high-end industrial models will reveal a preference for miniature stainless steel rails. Conversely, heavy-duty milling machines almost exclusively utilize high-rigidity roller-type guides. This benchmarking phase helps narrow down the vast array of available options to a manageable selection of rail types, such as ball-bearing or roller-bearing systems.

Furthermore, observing existing designs allows you to understand common mounting configurations. Most industrial systems use two parallel rails with two or four carriages to distribute the weight evenly. By seeing how competitors or previous generations of your own machines handled vibration and alignment, you can avoid common pitfalls. This stage is also the ideal time to consider specialized solutions like the KR Roller Linear Guide Rail, which is often favored in high-precision applications for its smooth motion and robust construction.

Finally, industry standards often dictate specific sizes. In the world of automation, certain rail widths (like 15mm, 20mm, or 25mm) have become the "standard" for specific weight classes. By aligning your design with these common sizes, you ensure better availability of replacement parts and a wider choice of manufacturers. This preliminary research saves significant time during the detailed engineering phase by eliminating incompatible or overkill components early in the process.

2.) Assessment of the loads in your case

Accurately assessing the loads involves quantifying every force acting on the carriage, including the weight of the payload, acceleration forces, and external work forces such as cutting or pressing pressures.

Load assessment is perhaps the most technical part of the selection process. You must consider the "Worst Case Scenario" for your Linear Guide Rail. This includes the static load (the weight when the machine is at rest) and the dynamic load (the forces generated during movement). Because the center of gravity often shifts during operation, you must calculate the moment loads—pitch, roll, and yaw—to ensure that the bearing blocks can handle the torque without premature wear.

In many B2B industrial settings, users often ask, How Much Weight Can a Linear Rail Support? The answer depends on the distribution of that weight. To get an accurate picture, engineers use the following load categories:

1. Gravitational Forces: The mass of the workpiece and the machine components.

2. Inertial Forces: Forces generated during rapid acceleration and deceleration.

3. External Forces: Forces applied by the process itself, such as a drill bit pressing into metal.

To simplify this, consider using a load table during your design phase:

Properly accounting for these variables ensures that the system is neither under-designed (leading to failure) nor over-designed (leading to unnecessary costs). At Weikente, we emphasize the importance of precision in these calculations to maximize the return on investment for your machinery.

3.) Evaluation of the load capacity of linear guide rails

Evaluating the load capacity requires comparing your calculated forces against the Basic Static Load Rating ($C_0$) and Basic Dynamic Load Rating ($C$) provided in the manufacturer's technical specifications.

Once you have your load numbers, you must match them to a specific product's capacity. The $C_0$ rating represents the maximum load that can be applied to the rail without causing permanent deformation to the raceways or rolling elements. It is a safety limit for when the machine is bumped or experiences an emergency stop. Usually, a safety factor of 1.5 to 3.0 is applied to $C_0$ depending on the level of vibration and impact expected in the environment.

The Dynamic Load Rating ($C$), on the other hand, is used to calculate the fatigue life of the Linear Guide Rail. This is the load under which 90% of a group of identical rails can run for a specified distance (usually 50km or 100km) without showing signs of material flaking. When evaluating capacity, it is essential to look at the KR Roller Linear Guide Rail specifications, as roller-type guides generally offer significantly higher load capacities and rigidity compared to ball-type guides of the same size.

To ensure your selection is robust, follow these three evaluation steps:

1. Determine the Safety Factor: High-precision machines require higher safety factors to maintain accuracy over time.

2. Check the Orientation: Load capacity can change if the rail is mounted on a wall or upside down.

3. Verify the Preload: Preloading the blocks can increase rigidity but also increases the internal load, which must be subtracted from the overall capacity.

4.) Calculation of the lifetime of linear guides

The lifetime calculation uses the ratio of the dynamic load rating to the applied load to predict the total travel distance the rail can achieve before fatigue failure occurs.

Predicting how long your machine will last is vital for maintenance planning and warranty offers. The nominal life ($L$) of a ball-based Linear Guide Rail is calculated using the formula $L = (C/P)^3 \times 100km$, where $C$ is the dynamic load rating and $P$ is the equivalent applied load. For roller guides, the exponent is 10/3 rather than 3, reflecting the different contact geometry of the rollers. This calculation tells you how many kilometers the carriage can travel before it is likely to fail.

Understanding How Much Weight Can a Linear Rail Support over a specific timeframe allows you to schedule lubrication and inspections. If your calculation shows a life of only 500km but your machine runs 24/7, you clearly need a larger rail or a system with a higher dynamic rating. Factors such as temperature, lubrication quality, and cleanliness also play a role, often represented by "service factors" that adjust the theoretical life downward.

Factors Influencing Service Life

• Lubrication: Regular greasing reduces friction and prevents oxidation.

• Contamination: Dust and debris can grind down the raceways; seals and scrapers are necessary.

• Installation Accuracy: Misaligned rails cause internal stress, drastically shortening the lifespan.

• Operating Speed: Higher speeds generate heat, which can affect the material properties of the bearing steel.

By performing these calculations early, you can guarantee that your equipment meets the expectations of your B2B clients. At Weikente, we provide the technical data sheets necessary to perform these precise life-cycle assessments for all our linear motion products.

5.) Choice of manufacturer or brands of linear guides

Choosing a manufacturer involves assessing their technical expertise, product consistency, lead times, and the ability to provide customized solutions that fit your specific industrial requirements.

The final step is selecting the partner who will provide the hardware. While many rails look similar on the surface, the quality of the steel, the precision of the grinding process, and the effectiveness of the sealing systems vary greatly between brands. A reputable manufacturer should offer comprehensive CAD files, clear technical documentation, and responsive customer support. In the global B2B market, reliability is the most valuable currency; a cheap rail that fails prematurely can cost thousands of dollars in downtime.

When comparing brands, look for those that specialize in high-performance metallurgy and precision engineering. Weikente has established itself as a leader in this space by focusing on the durability and accuracy required for modern automation. We ensure that our Linear Guide Rail products undergo rigorous testing to meet international standards, providing peace of mind for engineers who cannot afford mechanical failures.

Consider the following when making your final brand choice:

1. Availability and Lead Times: Can the supplier meet your production schedule?

2. Technical Support: Do they have engineers available to help with load calculations?

3. Range of Accessories: Do they offer specialized seals, lubrication units, or bellows?

4. Material Options: Can they provide stainless steel or special coatings for corrosive environments?
