The modern industrial landscape demands machinery that can handle immense loads without sacrificing the microscopic accuracy required for high-quality production. As manufacturing processes evolve, the reliance on robust mechanical components has become more pronounced, particularly in sectors like automotive assembly, aerospace construction, and heavy-duty CNC machining. The integration of heavy duty linear guide rails has revolutionized how engineers approach the challenge of moving several tons of weight while maintaining sub-millimeter tolerances. These systems are designed to mitigate friction, manage heat dissipation, and provide the structural rigidity necessary for long-term operational stability.

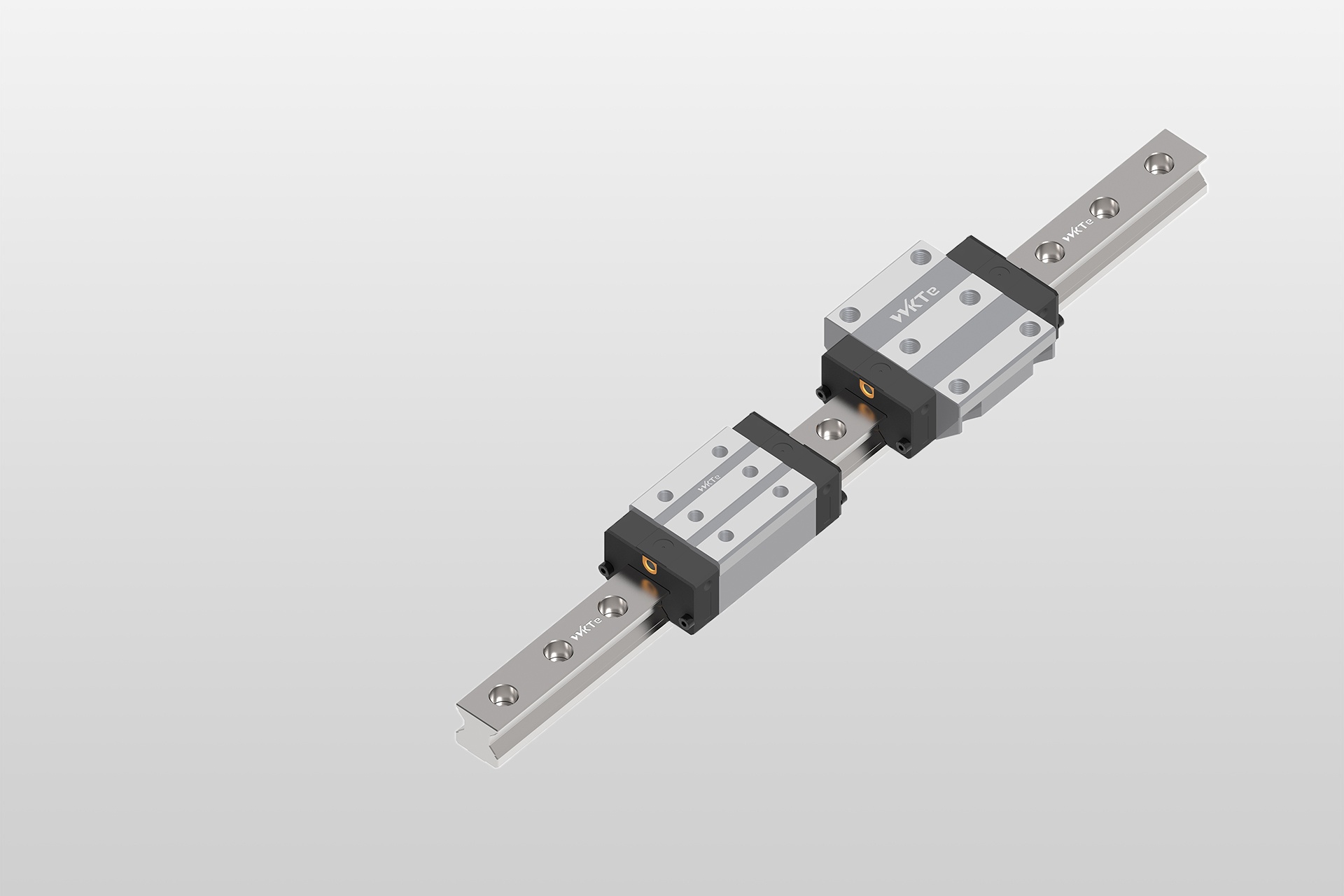

Heavy duty linear guide rails are high-capacity mechanical components engineered to support substantial loads while ensuring smooth, accurate linear motion. By utilizing advanced rolling element technology and reinforced rail profiles, these systems offer superior load distribution, high moment stiffness, and exceptional positioning accuracy for demanding industrial applications.
Understanding the nuances of these heavy-duty systems is essential for optimizing machine performance and reducing maintenance overhead. While standard guides may suffice for light automation, the leap to heavy-duty solutions requires a deep dive into material science, bearing geometry, and installation precision. This article explores the critical role of these components in industrial settings, comparing different architectural approaches and highlighting why transitioning to specialized heavy-duty rails is often the catalyst for increased productivity and equipment longevity.
Discover your heavy duty linear motion solution
Customer application story
Potential solutions
Architecting higher precision
Why change from a standard profile rail to WKTE-Rail?
Finding the right heavy duty linear guide rails involves identifying a system that balances load-bearing capacity with the specific environmental and precision requirements of your industrial application.
When embarking on the journey to select a motion system, the primary focus must be on the static and dynamic load ratings. For heavy-duty operations, the linear guide rails must not only support the weight of the workpiece and the machine carriage but also withstand the cutting forces and inertial shocks during acceleration and deceleration. Selecting a solution requires an analysis of the "moment of inertia" and the "resultant forces" acting upon the bearing blocks. A well-matched solution ensures that the contact stress between the rolling elements and the raceway remains within the elastic deformation limits, preventing premature pitting or failure.
Beyond just the weight capacity, a comprehensive linear motion solution accounts for the physical environment. In heavy industries, guides are often exposed to metallic dust, coolant sprays, or extreme temperature fluctuations. Therefore, a robust solution includes high-performance sealing systems, scrapers, and specialized lubrication units that maintain a consistent oil film. Furthermore, the rail's surface treatment—such as hard chrome plating or black oxide—can be a decisive factor in preventing corrosion in harsh environments, thereby extending the service life of the entire assembly.
Finally, the modularity of modern heavy duty linear guide rails allows for significant customization. Engineers can choose between different carriage lengths, preload levels, and rail mounting configurations (top-down vs. bottom-up) to fit the specific footprint of their machine. By integrating high-rigidity blocks with precision-ground rails, manufacturers can achieve a motion system that minimizes vibration and maximizes throughput. This discovery phase is critical because it sets the foundation for the machine's reliability and its ability to deliver consistent results over millions of cycles.
A real-world application of heavy duty linear guide rails can be seen in the structural steel fabrication industry, where massive bridge girders require precise positioning for automated robotic welding.
In a recent industrial upgrade, a major infrastructure contractor faced significant challenges with their existing gantry system used for welding 20-meter steel beams. The previous motion components were frequently failing due to the immense downward pressure and the lateral forces generated by the welding arms. The inaccuracy in movement led to "weld wander," which necessitated expensive manual rework and compromised the structural integrity of the girders. The environment was also heavily contaminated with welding spatter and grinding dust, which quickly degraded the standard bearings.
By transitioning to a heavy-duty linear guide rail system specifically designed for high-moment loads, the company saw an immediate improvement in stability. The new system utilized reinforced carriage blocks with six rows of rolling elements, which provided a more uniform distribution of the weight. This increased rigidity meant that even when the robotic arm reached its maximum extension, the rail showed negligible deflection. The implementation of specialized metal scrapers and reinforced end-seals prevented debris from entering the bearing raceways, which had been the primary cause of the previous system's failure.
The results of this transition were measurable and significant. The production line saw a 30% increase in speed because the robotic controllers could operate at higher acceleration rates without inducing vibration. Maintenance intervals were extended from every two weeks to once every six months, drastically reducing downtime. This case study demonstrates that investing in the correct grade of linear guide rails is not merely an incremental improvement but a fundamental shift in operational efficiency and product quality for heavy-scale manufacturing.
Potential solutions for heavy-load challenges include a variety of linear guide rail configurations such as roller-type guides, wide-profile rails, and synchronized multi-carriage systems designed to dissipate stress.
When evaluating potential solutions, the choice often falls between ball-type and roller-type linear guide rails. For truly heavy-duty applications, roller-type guides are frequently the preferred solution because they provide line contact rather than point contact. This fundamental difference in geometry allows for a much higher load capacity and greater rigidity under the same physical footprint. In scenarios where high-speed movement is paired with heavy lifting, specialized "caged" roller guides can be used to reduce noise and improve the consistency of the lubrication film, ensuring the system remains cool even during high-duty cycles.
Another viable solution involves the use of wide-profile or "twin-track" linear guide rails. These systems are designed with a broader base to handle high-moment loads (Mx, My, and Mz) more effectively. By increasing the distance between the raceways, the guide can resist twisting forces that would otherwise cause a standard rail to bind or wear unevenly. This is particularly useful in "overhung" load applications, where the center of gravity of the payload is shifted to one side of the guide rail.
Furthermore, integrating smart lubrication systems as part of the solution can significantly enhance the performance of heavy duty linear guide rails. These systems use sensors to monitor the travel distance and apply precise amounts of grease directly to the raceways. This prevents "dry running," which is the leading cause of friction-related failure in heavy machinery. By combining the right hardware with intelligent maintenance tools, manufacturers can create a robust ecosystem that supports continuous, high-precision operation.
Architecting higher precision in heavy-duty systems requires a focus on rail parallelism, surface grinding tolerances, and the strategic application of preload to eliminate mechanical play.
Precision in heavy duty linear guide rails is not just about the quality of the individual components but how they are integrated into the machine's frame. To achieve micron-level accuracy, the mounting surfaces must be machined to extremely tight flatnesses. If the base plate is uneven, the guide rail will follow that contour, leading to "snaking" or binding. Engineers often use "master" and "subsidiary" rail configurations, where one rail is strictly aligned to a reference shoulder while the second rail is allowed a slight degree of freedom during installation to compensate for parallelism errors, ensuring smooth travel without internal stress.
Preload is another critical architectural element. In heavy-duty applications, a "Heavy Preload" (typically denoted as ZH or P3) is often applied to the bearing blocks. This involves using slightly oversized rolling elements to create a negative clearance within the block. This removes any "slop" or play in the system, ensuring that the carriage does not shift under changing load directions. While higher preload increases the force required to move the carriage, it provides the exceptional stiffness necessary for precision tasks like heavy-duty boring or grinding, where even a few microns of deflection can ruin a part.
Finally, the thermal management of the rail system plays a vital role in architecting precision. As heavy loads move at high speeds, friction generates heat, which causes the linear guide rails to expand. This thermal expansion can alter the pitch of the machine and lead to positioning errors. Precision-engineered systems often incorporate cooling channels or use materials with low thermal expansion coefficients. Additionally, the use of high-grade lubricants with thermal stabilizers helps maintain a consistent operating temperature, ensuring that the precision "architected" into the machine on day one remains consistent throughout the production shift.
Switching to a WKTE-Rail system provides enhanced load distribution and a reinforced structure that outperforms standard profile rails in high-vibration and heavy-shock environments.
The transition from a standard profile rail to a WKTE-Rail is often driven by the need for greater durability under extreme conditions. Standard rails are typically designed for general-purpose automation where loads are predictable and environmental factors are controlled. However, in heavy industrial settings, the "standard" design can suffer from "edge loading"—a phenomenon where the stress is concentrated on the ends of the bearing block rather than being distributed evenly. The WKTE-Rail architecture utilizes a specialized internal geometry that optimizes the contact angle of the rolling elements, ensuring that even under heavy tilting moments, the load is spread across a larger surface area.
Performance comparisons show that the WKTE-Rail offers a significantly higher static safety factor. This means that in the event of an emergency stop or a sudden impact, the rail is much less likely to suffer from "Brinelling" (permanent indentation of the raceways). For industries like automotive stamping or stone cutting, where shock loads are a daily occurrence, this added robustness translates directly into fewer catastrophic failures and longer equipment uptime.
Enhanced Load Density: The WKTE-Rail allows for smaller machine footprints because a single rail can often handle the load that would require two standard rails.
Reduced Friction Variation: The optimized recirculation paths in the WKTE design ensure a smoother transition for rolling elements, reducing the "cogging" effect during slow-speed precision moves.
Superior Sealing Technology: Unlike standard guides, WKTE-Rail systems often come standard with multi-lip seals that are specifically designed to repel the fine particulate matter found in heavy manufacturing.
Lower Total Cost of Ownership: While the initial investment may be higher, the extended service life and reduced maintenance frequency of the WKTE-Rail make it the more economical choice over the machine's lifecycle.
By upgrading to this specialized heavy-duty technology, manufacturers are not just replacing a part; they are upgrading the capability of their entire production line. The WKTE-Rail provides the confidence to push machines to higher speeds and heavier loads, knowing that the linear guide rails—the very foundation of the machine's motion—are engineered to handle the pressure.
