Linear Guides vs. Linear Bearings: Understanding the Key Differences

When evaluating linear motion control components, the primary distinction between linear guides and linear bearings lies in their mechanical construction, load-bearing capability, and precision guidance: linear guides utilize profile rails with profiled recirculating ball or roller block assemblies engineered to withstand heavy radial, reverse radial, and torsional moment loads simultaneously with sub-micron positional accuracy, whereas traditional linear bearings employ cylindrical linear bushings sliding along round shafting, primarily suited for lighter loads, overhung moments, or budget-sensitive applications requiring self-aligning ease.

At a Glance

Understanding Linear Guides

Linear guides consist of a precision-ground profile rail paired with a moving carriage block containing internal recirculating rolling elements that provide high rigidity, smooth motion, and exceptional load capacity across multi-axial forces.

Linear guide systems represent the benchmark for precision linear motion control in modern industrial automation and heavy machinery. At their core, linear guide rails feature intricate Gothic arch or circular arch raceway grooves ground directly into the steel profile. These raceways match the curvature of recirculating steel balls or cylindrical rollers housed inside the guide block. When external forces act upon the carriage, the rolling elements transmit forces directly into the rail structure, distributing stress evenly across optimized contact points. This unique geometry allows a linear guide rail to withstand intense radial, reverse radial, and lateral forces simultaneously while offering exceptional resistance to pitch, yaw, and roll moment loads.

From an engineering perspective, the internal mechanics of a high-performance linear guide block rely on continuous recirculation paths. Steel balls or micro-cylindrical rollers pass through ground load zones, enter direction-changing end caps, and return through internal sleeve channels. This endless loop ensures non-stop linear motion without stroke limitations. In our field testing and client feedback analysis, particularly when working with high-speed automated gantries and precision gantry machinery, the integration of specialized surface treatments, double-lip contact end seals, and synthetic ball cages dramatically reduces friction, eliminates stick-slip, and minimizes acoustic noise. European and North American machine builders specifically demand high-rigidity profile linear guide rail options with optimized preload levels to maintain positional accuracy under continuous vibration and heavy duty cycles.

Why do we design profile linear guide rails with four-row ball contacts in a 45-degree angular configuration? Real-world industrial environments subject linear motion components to complex multi-axial vectors. By arranging ball raceways at equal 45-degree contact angles, the linear guide rail achieves identical load ratings in both the radial and lateral directions, ensuring maximum system versatility. Equipment specifiers frequently emphasize that maintaining rigidity without increasing slide resistance is the most critical feature. Incorporating advanced heavy-duty structural designs, such as KG/KD Golden Armour series linear guide rails, provides robust protection against harsh particulate contamination while preserving micro-inch positional accuracy in rigorous production environments.

Technical Specifications and Structural Components of Linear Guides

Maintenance Best Practices: Regular replenishment of lithium-soap-based grease through dedicated grease nipples every 100 kilometers of travel or every three months is vital to maintaining oil film thickness between raceways and rolling elements. In highly contaminated environments, daily visual inspections of end scraper seals and synthetic wiper lips prevent abrasive particulate intrusion, doubling the operational lifespan of the linear guide rail assembly.

Exploring Linear Bearings

Linear bearings, commonly referred to as linear bushings or round shaft bearings, are cylindrical sleeve assemblies designed to slide along hardened round steel shafts to offer smooth, low-friction linear motion for light to moderate load applications.

Linear bearing assemblies utilize a simpler cylindrical geometry compared to profile rails. A typical linear bearing consists of an outer steel sleeve, a synthetic resin ball retainer cage, retaining rings, and multiple longitudinal rows of recirculating steel balls. The bearing slides smoothly over a precision-ground, induction-hardened round shaft. Because the contact between the spherical balls and the smooth cylindrical outer diameter of the round shaft is theoretically a single point, linear bearings produce exceptionally low rolling friction. This friction characteristics make them ideal for manually operated mechanisms, high-speed lightweight pick-and-place units, and cost-sensitive automation equipment.

While linear bearings excel at providing smooth axial sliding with minimal actuation force, their geometric configuration creates distinct structural limitations. Because round shafts are typically supported only at both ends rather than continuous support along their entire length, long round shafts tend to flex or deflect under heavy vertical loads. Furthermore, standard linear ball bushings cannot withstand rotational torque or moment loads around the shaft axis. Attempting to apply a torsional moment to a single round linear bearing causes severe stress concentration on individual bearing balls, leading to premature brinelling and raceway flaking. To counter shaft deflection, open-type linear bearings paired with continuously supported round shafts are sometimes utilized, though structural stiffness remains significantly lower than that of profile linear guide rails.

From an application engineering stance, why do linear bearings remain a preferred choice for certain automation lines? Practical experience reveals that non-critical sliding mechanisms, packaging equipment adjusters, and laboratory instrument slides benefit greatly from the forgiving installation tolerances of round shaft linear bearings. Unlike rigid profile guide systems that demand strict mounting surface flatness within hundredths of a millimeter, round shaft linear bearings can tolerate minor mounting misalignment without binding. European equipment designers frequently select corrosion-resistant stainless steel linear bushings with integrated rubber seals for food processing and medical packing lines where cleanability and lower baseline material costs outweigh the need for ultra-high load capacity.

Technical Specifications and Structural Components of Linear Bearings

Operating Principle Insights: Linear ball bearings operate by continuously circulating steel balls through longitudinal raceway tracks within the resin retainer. As the bearing moves linearly along the hardened shaft, balls in the load zone transmit the force directly from the sleeve to the shaft surface, before recirculating back through non-loaded return channels. Smooth shaft surface finishes (Ra 0.2 to 0.4 microns) are critical to preventing premature fatigue of the recirculating balls.

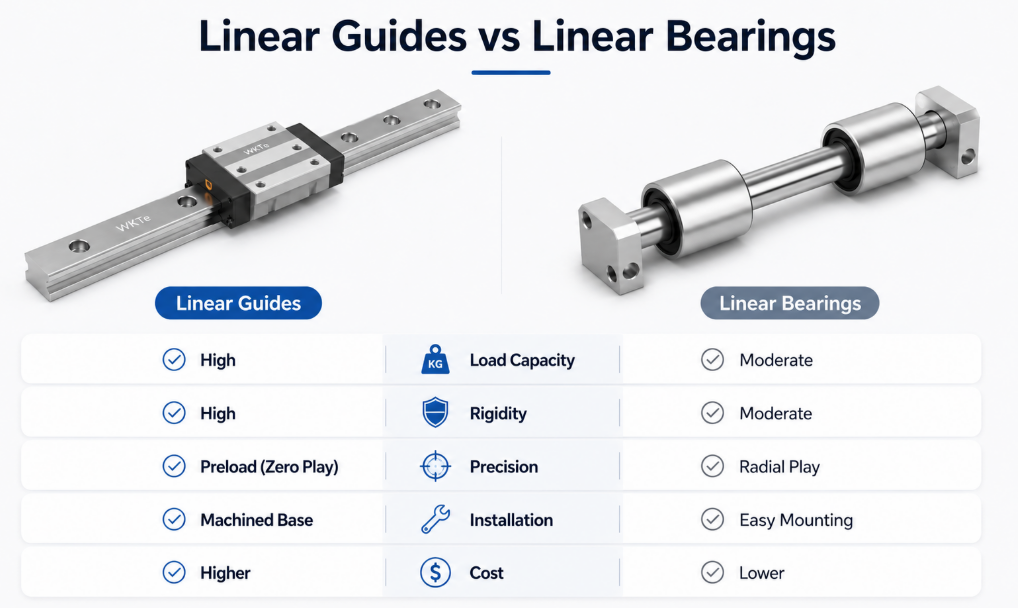

Key Differences Between Linear Guides and Linear Bearings

The fundamental differences between linear guides and linear bearings center on structural load capacity, moment load resistance, rigidity, installation tolerance, and overall system cost structures.

When conducting a comparative engineering analysis between these two motion control solutions, load-carrying performance presents the most striking contrast. Profiled linear guide rail systems feature continuous conformable raceway grooves that create line-contact or multi-point elliptical contact stress distribution. In contrast, linear bearings resting on round shafts rely entirely on point-contact stress geometry. As a result of this geometric distinction, a profiled linear guide rail system can support dynamic loads up to five to ten times greater than a round shaft linear bearing of equivalent physical envelope size. Furthermore, a single linear guide carriage block can handle heavy pitch, yaw, and roll moment forces, whereas linear bearings must always be arranged in dual parallel shaft configurations with widely spaced multiple bushings to handle moment loads.

Another vital technical differentiator lies in mechanical rigidity and positional repeatability. Profiled linear guide rails are designed to incorporate internal preload settings by fitting oversized steel balls into the raceways. This deliberate internal interference eliminates radial clearance and mechanical backlash, providing extreme torsional rigidity and positioning accuracy within micrometer thresholds under dynamic stopping and starting forces. Conversely, standard linear bearings possess inherent radial play between the balls and the round shaft. While clearance-adjustable linear bushings exist, applying heavy preload to a round shaft bearing rapidly accelerates shaft grooving and wear due to point-load concentration. Consequently, high-speed CNC machine tools, semiconductor wafer handling systems, and precision measuring devices exclusively employ high-rigidity profile heavy-duty linear guide rail assemblies to ensure flawless tracking and zero structural play.

Installation requirements and baseline economics also dictate component selection. Linear bearings offer superior installation flexibility because round shafts can be mounted using end-support blocks, requiring minimal surface preparation or precision machining of the mounting base plate. Linear guide rails, however, require high-precision ground reference edges and flat mounting shoulders to prevent binding and ensure uniform load distribution across all recirculating elements. While the initial component cost of a linear guide system is typically higher than a basic round linear bearing and shaft set, total operational value, reduced maintenance downtime, and significantly longer operational lifespan often make profile linear guide rails the most economical long-term investment for high-duty B2B manufacturing plants.

Comprehensive Engineering Comparison: Linear Guides vs. Linear Bearings

Structural Rigidity Considerations: Rigidity in linear motion directly correlates with the cross-sectional contact area of the rolling elements. Profile linear guide rails utilize Gothic arch raceways where ball deformation under load creates an elliptical contact patch, absorbing heavy shock loads without structural failure. Round shaft bearings lack grooved raceways, meaning heavy shock loads cause permanent surface indents (brinelling) on the shaft, leading to rapid motion degradation.

Choosing the Right Solution for Your Application

Selecting between a linear guide and a linear bearing requires a comprehensive evaluation of applied load directions, required positional accuracy, structural mounting constraints, environmental conditions, and lifetime operational budget.

To select the optimal linear motion component for your machinery, engineers must start by calculating the total static and dynamic load vectors acting on the system during peak acceleration and deceleration phases. If your application involves multi-axis cantilevered forces, high-speed gantry positioning, or heavy vertical payloads, a profile linear guide rail is mandatory. For example, industrial CNC routers, high-force hydraulic presses, and automated robotic welding arms experience significant vibration and multi-directional shock loads. Integrating heavy-duty carriage blocks with robust sealing technology, such as the armoured protective linear guide rail series, ensures maximum operational uptime and prevents premature failure caused by abrasive welding spatter or metallic dust ingress.

Conversely, if your design calls for lightweight sliding movement, smooth manual stroke adjustment, or low-cost automated transfer, round shaft linear bearings provide an effective, economical solution. Applications such as 3D printers, commercial packaging pushers, laboratory sample analyzers, and ergonomic workstation slide adjustments operate well within the performance envelope of linear bushings. Furthermore, when operating in harsh chemical washdown environments where precision ground flat base plates are impractical, stainless steel round shafts paired with self-lubricated linear sleeve bushings offer exceptional corrosion resistance and mechanical simplicity without requiring expensive precision surface grinding during machine assembly.

Ultimately, evaluating actual customer priorities reveals that European and global industrial buyers focus heavily on total cost of ownership rather than initial purchase price alone. Machine downtime, frequent re-lubrication needs, and component replacement labor account for the vast majority of lifecycle expenses. While round shaft linear bearings save costs upfront during prototype construction, upgrading to profile linear guide rails delivers long-term durability, higher machine throughput, and superior operational repeatability. By carefully matching the dynamic requirements of your automation system with the appropriate linear motion technology, you guarantee optimal performance, minimal maintenance, and maximum system reliability.

Step-by-Step Decision Framework for Linear Motion Selection

1. Calculate Applied Load Vectors and Dynamic Moments: Identify all radial, reverse radial, side lateral, and moment forces (pitch, roll, yaw) acting on the slide mechanism during acceleration spikes.

2. Define Positional Repeatability and Rigidity Standards: Determine whether your system requires micron-level positioning repeatability without backlash or if standard sliding tolerances are acceptable.

3. Evaluate Shaft/Rail Support and Mounting Base Flatness: Assess if continuous bolted support on precision-ground machine bases is available or if end-supported round shafts must bridge unsupported gaps.

4. Assess Operational Environment and Contamination Levels: Inspect the working environment for abrasive dust, liquid coolants, high temperatures, or chemical exposure to select appropriate wiper seals and surface coatings.

5. Analyze Total Cost of Ownership vs Initial Hardware Budget: Balance initial component procurement expenses against long-term machine reliability, maintenance intervals, and potential downtime costs.

Operational Troubleshooting Tip: When transitioning a machine design from round linear bearings to profile linear guide rails, ensure that mounting base parallel accuracy is verified using dial indicators during installation. Tightening mounting bolts on an uneven base can induce internal stress within linear guide carriage blocks, causing premature ball fatigue and uneven motion resistance.
