As an industrial engineering specialist with years of field experience in high-precision motion systems, I can confirm that maintaining proper lubrication on Linear Guide Rails is the single most critical factor in preventing premature surface fatigue, minimizing stick-slip friction, and ensuring micro-meter positional repeatability. To keep your Linear Guide Rails running smoothly and reliably, you must thoroughly clean old debris from the raceways, select a grease tailored to your load and speed profile, inject precise lubricant volumes through the grease nipple using a calibrated grease gun while cycling the block, and verify that the end seals retain an even protective oil film without dry spots or thermal degradation.
Section |
Summary |
What are Linear Guide Rails and Why Do They Need Lubrication? |
Explains the structural function of Linear Guide Rails and the critical tribological reasons why proper grease lubrication prevents friction, wear, corrosion, and catastrophic failure. |
Step-by-Step Procedure to Grease Linear Guide Rails |
Provides a thorough technical walkthrough detailing cleaning, tool preparation, precise grease injection via grease nipples, block cycling, and post-lubrication inspection. |
Best Practices in Greasing Linear Guide Rails |
Outlines essential field guidelines regarding lubricant selection, re-lubrication intervals based on operating conditions, volume calculations, and seal integrity checks. |
Here is how to grease linear guide rails: mistakes to avoid |
Identifies major maintenance errors such as over-greasing, mixing incompatible soap bases, ignoring environmental contamination, and neglecting seal degradation. |
In modern automated manufacturing, precision CNC machining, and high-speed robotic assembly, linear motion components form the backbone of positional accuracy. Throughout my career managing automated production lines and auditing industrial equipment failures, I have seen that over 70% of premature linear bearing failures stem directly from improper lubrication—either insufficient grease quantity, incorrect lubricant grade, or contamination entering the ball tracks.
When operating high-load precision assemblies, engineers frequently face line stoppages caused by stick-slip motion, thermal expansion of runner blocks, and fretting corrosion on bearing steel raceways. High-precision machinery demands robust mechanical components engineered for extreme durability under harsh industrial conditions. For applications demanding heavy load capacities and rigorous operational stability, upgrading to advanced motion components like the KG-KD Golden Armour Linear Guide Rails provides superior wear resistance and extended service life. In this comprehensive guide, I share technical protocols, tribological principles, and step-by-step procedures to help maintenance technicians, machine operators, and design engineers maximize the performance and longevity of their linear guide systems.
Linear Guide Rails are high-precision structural motion components designed to support and guide moving mechanical loads along a linear axis with minimal friction, requiring continuous lubrication to form a protective hydrodynamic film that prevents metal-to-metal contact, disperses friction heat, and protects raceways from oxidation.

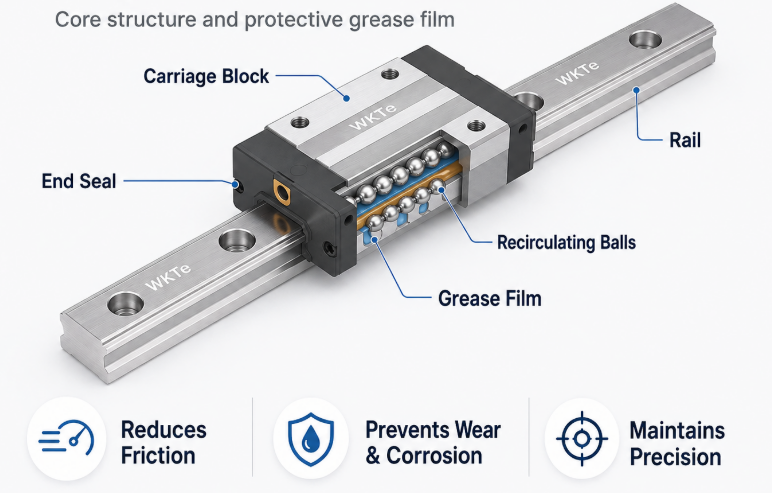

Linear Guide Rails consist of a ground steel rail with precision-machined raceway grooves and a sliding block (runner block) housing recirculating rolling elements, such as steel balls or cylindrical rollers. As the block moves along the rail, these rolling elements experience intense point or line contact stress. Without an elastohydrodynamic lubrication film between the steel balls and the raceway tracks, direct metal contact occurs instantly, leading to severe adhesive wear, surface pitting, and immediate accuracy loss.
Beyond reducing sliding friction between internal ball separators and raceways, grease acts as a dynamic seal. It forms a physical barrier around the scraper seals and end seals, preventing airborne dust, metal chips, coolant fluids, and moisture from penetrating the internal recirculating paths. Furthermore, appropriate lubrication dissipates localized heat generated at high linear velocities, ensuring thermal stability across the machine bed.
Parameter / Feature |
Specification Details |
Operational Impact |
Raceway Hardness |
58 – 62 HRC (Induction Hardened Steel) |
Prevents plastic deformation under heavy load |
Rolling Element Type |
Precision Bearing Steel Balls / Cylindrical Rollers |
Determines load capacity and rigidity |
Lubrication Film Thickness |
0.1 to 1.0 microns (Elastohydrodynamic Film) |
Eliminates metallic contact during movement |
Friction Coefficient |
0.002 – 0.005 (Fully Lubricated State) |
Ensures ultra-smooth motion with low driving torque |
Base Oil Viscosity Range |
ISO VG 32 to ISO VG 460 (Depending on speed/load) |
Dictates film strength under operating temperatures |
Why do European machine builders and precision equipment manufacturers prioritize optimized rail design? Our field testing reveals that European clients strongly prefer wide-block linear configurations with integrated multi-lip end seals and built-in oil storage reservoirs. This design maintains lubricant distribution even during vertical-axis mounting and long-stroke high-acceleration cycles, reducing maintenance frequency by up to 40%. Installing high-rigidity components like industrial-grade Linear Guide Rails ensures consistent structural alignment and enhances lubricant retention under continuous duty cycles.
Working Principle Note: Elastohydrodynamic Lubrication (EHL) occurs when high contact pressures between the rolling elements and raceway elastic surfaces cause the lubricant base oil to temporarily solidify into a glass-like state within the contact zone, sustaining heavy loads without fluid film breakdown.
Greasing linear guide rails requires a systematic process involving surface contamination cleanup, selecting the proper grease gun coupling, slowly injecting designated lubricant volumes through the grease nipple while manually cycling the block, and wiping away extruded excess grease.
Proper maintenance requires strict adherence to a clean, methodical workflow. Dust or particulate contamination introduced during greasing can quickly damage internal raceways and recirculation caps.
Safety Preparation and Initial Surface Cleaning
Lock out and tag out (LOTO) the machinery power supply. Using a lint-free industrial wipe and a mild hydrocarbon solvent, thoroughly clean the top and side raceways of the rail. Remove baked-on coolant residue, swarf, and dried grease build-up. Inspect the end seals for physical damage or tears.
Grease Gun Attachment and Pre-Filling
Attach a compatible grease nozzle (such as a needle nozzle or standard hydraulic coupler, depending on the block nipple size: M4, M6, or G1/8) to a manual or calibrated battery-powered grease gun. Purge a small amount of fresh grease from the nozzle tip to verify that no air pockets or contaminants remain in the supply tube.
Controlled Lubricant Injection
Connect the coupler securely to the grease nipple located on the front or side of the carriage block. Inject approximately 50% of the calculated initial grease volume slowly. Rapid high-pressure pumping can rupture internal plastic end-caps or push the wiper seals out of their retaining grooves.
Stroke Cycling and Secondary Injection
Slowly move the carriage block back and forth along the guide rail over a distance equal to at least three times the block length. This distributes the grease evenly across all internal recirculation channels and ball tracks. Inject the remaining 50% of grease while continuing to cycle the block.
Wipe Down and Seal Inspection
Disconnect the grease gun coupler. Wipe away any excess grease that has extruded from the scraper seals or grease fitting. A thin, uniform film of oil should remain visible on the rail raceways, indicating proper seal lip lubrication without excessive accumulation.
Step Number |
Process Action |
Required Tools / Materials |
Target Technical Outcome |
Step 1 |
Surface Solvent Cleaning |
Non-lint wipes, isopropyl alcohol / solvent |
Complete removal of particulate contamination |
Step 2 |
Fitting & Tool Setup |
Calibrated grease gun, matching nozzle tip |
Air-free lubricant delivery pathway |
Step 3 |
Primary Injection |
Manual lever grease gun |
Partial chamber filling without seal distortion |
Step 4 |
Carriage Block Cycling |
Manual or low-speed drive cycling |
Homogeneous grease distribution across balls |
Step 5 |
Final Wipe & Inspection |
Microfiber cloth, inspection lamp |
Controlled oil film retention without mess |
In heavy-load CNC machining and high-vibration applications, standard guide rails often suffer from micro-fretting along raceway tracks. Implementing specialized surface coatings, such as golden titanium-aluminum nitriding or dense chrome plating, dramatically reduces friction and prevents fretting corrosion. Equipment operating under aggressive conditions benefits from heavy-duty options like the KG-KD Golden Armour Linear Guide Rails, which utilize enhanced surface treatments to preserve lubrication integrity and extend component life.
Best practices for linear guide rail lubrication include specifying thickener types matched to operational speeds, establishing precise re-lubrication intervals based on operating distance, calculating exact grease charge volumes, and maintaining strict cleanliness during maintenance.
To maximize service life and maintain high positional precision, engineering teams must implement standardized lubrication protocols rather than relying on arbitrary maintenance schedules.
Lubricant Thickener and Base Oil Selection
Select lithium-soap or synthetic polyurea thickeners for general industrial automation. High-speed applications require low-viscosity synthetic base oils (ISO VG 15 to 32), whereas heavy-load or short-stroke application profiles require high base oil viscosity (ISO VG 220 to 460) with extreme pressure (EP) additives.
Determining Re-Lubrication Intervals
Base maintenance schedules on run time or travel distance rather than calendar days. Standard light-duty automation typically requires re-lubrication every 100 km to 500 km of travel distance, or every 6 to 12 months. High-speed, continuous-duty machines may require automatic lubrication systems delivering micro-doses every few operating hours.
Calculating Initial and Replenishment Grease Volumes
Always consult manufacturer technical tables for exact block volume capacities. As a rule of thumb, the re-lubrication volume (V) can be estimated using carriage block physical dimensions:
V = 0.005 * B *H
where V is in cubic centimeters (cm^3), B is the rail width in millimeters (mm), and H is the carriage height in millimeters (mm).
Environment-Specific Protection
In cleanroom or semiconductor manufacturing environments, specify low-outgassing fluorinated (PFPE) greases. In food processing or pharmaceutical packaging, use NSF H1 food-grade synthetic lubricants resistant to washdown fluids.
Operating Condition |
Recommended Thickener / Base Oil |
Re-Lubrication Travel Interval |
Key Performance Criteria |
Standard Automation |
Lithium Complex / Mineral Oil (ISO VG 68-100) |
1,000 km or 12 Months |
Good mechanical stability & rust prevention |
High Speed |
Polyurea / Synthetic Ester Oil (ISO VG 32) |
500 km to 800 km |
Low viscous drag & low temperature rise |
Heavy Load / Vibration |
Lithium / EP Additives (ISO VG 220-460) |
200 km to 500 km |
High weld load & wear resistance |
Cleanroom / Vacuum |
PTFE / PFPE Fluorinated Synthetic |
2,000 km or 24 Months |
Ultra-low outgassing & chemical inertness |
Why do we design carriage blocks with dual-side grease ports and top-access oil holes? Customers in high-density automation sectors prioritize multi-directional lubrication access. When building complex multi-axis gantry robots, space constraints often block front grease fittings. Dual-side ports ensure technicians can service carriage blocks easily regardless of mounting orientation or structural clearance. Incorporating reliable components across multi-axis frameworks—such as standard Linear Guide Rails—simplifies preventative maintenance and reduces overall downtime.
Maintenance Tips: When operating linear systems in vertical ($Z$-axis) configurations, grease tends to drain downward due to gravity. Always increase re-lubrication frequency by approximately 30% to 50%, or use greases with higher thickener stability (NLGI Grade 2) to prevent lubricant starvation in the upper ball tracks.
Critical greasing errors to avoid include over-greasing the carriage block, mixing incompatible lubricant thickeners, using solid-particle additives like molybdenum disulfide in small ball bearings, and ignoring worn wiper seals during maintenance.
Avoiding common maintenance pitfalls is just as important as following correct greasing steps. Improper techniques can lead to premature seal failure, increased drag torque, and internal component damage.
Avoid Over-Greasing (Excessive Pressure and Volume)
Pumping excessive grease into the carriage block creates hydraulic resistance within the ball recirculation paths. This drastically increases motion resistance, generates frictional heat, and can rupture end caps or dislodge wiper seals, exposing internal bearings to ambient contaminants.
Never Mix Incompatible Greases
Combining different grease formulations—such as a lithium-complex grease with a aluminum-complex or sodium-base grease—can alter the chemical structure of the thickeners. This causes grease soft-softening, oil separation, and complete loss of lubricating capability.
Do Not Use Solid Particle Additives (MoS2) in Small Ball Systems
Greases containing solid particles like Molybdenum Disulfide or graphite are designed for plain bearings and heavy sliding pins. In small ball linear bearings, these solid particles can jam ball recirculation channels, cause ball skid, and lead to catastrophic carriage seizure.
Never Ignore Damaged or Worn Seals
Applying fresh grease to a carriage block with cracked, torn, or hardened scraper seals provides only temporary protection. Contaminants will quickly bypass compromised seals, contaminating the fresh lubricant and accelerating raceway grinding wear.
Maintenance Mistake |
Physical Root Cause |
Immediate Consequence |
Long-Term Mechanical Failure |
Over-Greasing |
High internal hydraulic pressure |
Seal pop-out & high drag torque |
Thermal degradation & seal leakage |
Grease Incompatibility |
Chemical breakdown of thickener matrix |
Fluid liquefaction or hardening |
Complete lubricant starvation & corrosion |
Using MoS2 Solids |
Particle accumulation in ball return tubes |
Ball skidding & channel blockage |
Recirculation cap breakage & block seizure |
Neglecting Damaged Seals |
Loss of scraping contact on rail profile |
Dust/coolant ingress into raceways |
Severe abrasive wear & spalling |
In demanding industrial environments exposed to abrasive dust, metal chips, or acidic coolant sprays, baseline rail setups can suffer rapid degradation. Utilizing reinforced components such as the KG-KD Golden Armour Linear Guide Rails delivers superior structural integrity and corrosion protection, helping safeguard your equipment investment against severe operational wear.
Maintaining Linear Guide Rails through disciplined lubrication protocols is fundamental to achieving high precision, operational efficiency, and long component service life. By understanding elastohydrodynamic principles, using correct grease injection techniques, establishing mileage-based re-lubrication intervals, and avoiding over-greasing or chemical incompatibility, maintenance engineers can effectively eliminate unscheduled downtime and maintain micro-meter repeatability across all linear motion axes.
