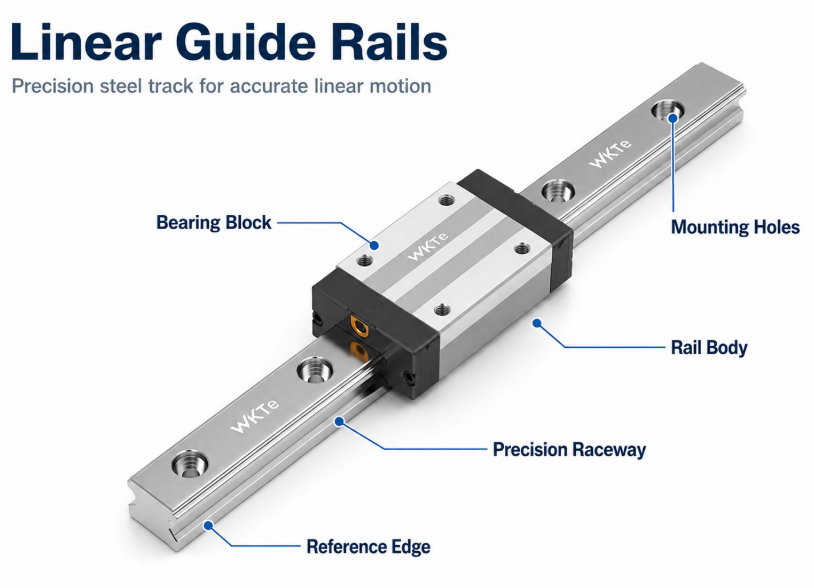

Linear guide rails are specialized precision steel tracks featuring ground raceways designed to guide recirculating bearing blocks along a true linear axis with minimal deflection.
Linear guide rails function as the foundational backbone for high-precision translational motion in computer numerical control machinery. Manufactured primarily from high-carbon chromium bearing steel or alloy steels, a precision linear guide rail undergoes advanced induction hardening along its raceway tracks to achieve rockwell hardness levels typically exceeding HRC 58 to 62. The non-raceway structural core retains toughness to absorb shock loads during aggressive cutting operations. The geometrical profile of the raceway is ground to exact tolerances, featuring either circular-arc or Gothic-arch geometry to optimize contact stress distribution when paired with rolling elements under heavy operational loads.
From an engineering perspective, the structural rigidity of a linear guide rail directly determines the machining accuracy, chatter resistance, and overall tool life of a CNC system. When dynamic cutting forces act upon a machine tool column or saddle, the bending moment and torsional loads are transmitted directly into the rail bed. Proper mounting surface flatnesses and precision bolt pitch spacing are critical during assembly. To prevent rail bowing or micro-fretting corrosion, precision-ground reference edges are incorporated along the length of the rail, allowing rigid alignment against machined machine base shoulders using pressure plates or push screws.
In modern industrial automated environments, standard steel rails often face premature degradation when exposed to synthetic coolant fluids, airborne acidic vapors, or abrasive metallic dust. Through extensive field testing, engineers have determined that standard oil film protection is frequently insufficient. Implementing specialized structural protection, such as high-integrity surface plating, extends operational lifetime exponentially. For demanding operational environments, integrating a heavy-duty surface protected linear guide rail provides an impenetrable defense against chemical oxidation and fretting corrosion, preserving trackway geometric integrity over millions of operational cycles.
Component Element | Material / Technical Specification | Primary Structural Function |
Rail Body | SUJ2 / High-Carbon Chromium Steel | Provides high bending rigidity and mechanical strength for the main axis trackway. |
Precision Raceways | Induction Hardened (HRC 58-62), Ground | Guides rolling elements with sub-micron geometric accuracy and minimal rolling resistance. |
Mounting Holes | Counterbored or Threaded (Pitch: 20-60mm) | Secures the rail rigidly to the machine bed structure to resist high operational torque. |
Reference Edge | Precision Ground Alignment Shoulder | Ensures straightness alignment against the machine base datum shoulder during installation. |
Linear bearings are enclosed carriage block assemblies housing recirculating rolling elements that translate smoothly along linear guide rails while maintaining rigid multi-axis load capacities.
A linear bearing carriage block is a complex tribological assembly consisting of a precision-machined steel body, internal ball or roller recirculation channels, polymer re-direction end caps, integrated wiper seals, and internal lubrication distribution circuits. As the carriage translates along the linear guide rail, hundreds of rolling elements cycle through load-bearing raceways into non-loaded return pathways. This continuous rolling recirculation replaces sliding friction with rolling friction, dropping the system friction coefficient down to 0.002 - 0.003 and eliminating the destructive stick-slip effect that plagues traditional box-way sliding machine slides.
The structural performance of linear bearings under dynamic CNC machining forces is heavily governed by internal clearance and preloading parameters. Preloading is achieved by selectively sizing rolling elements slightly larger than the internal clearance space between the carriage raceways and rail tracks. This intentional elastic pre-deformation eliminates internal mechanical backlash and increases the dynamic radial and reverse-radial stiffness of the entire assembly. When machine beds experience sudden directional reversals or high-frequency vibrations from heavy end-milling operations, preloaded linear bearings maintain continuous point or line contact, ensuring track stability.
In advanced machinery design, European and global machine tool builders prioritize seal integrity and continuous lubrication delivery within the bearing carriage block. Standard dust seals can allow micro-scale chips or fine cast-iron dust to penetrate the inner circuit, causing raceway pitting and premature fatigue flaking. Advanced linear bearing carriages now integrate multi-layer inner seals, bottom seals, and side seals alongside self-lubricating synthetic resin tanks. These tanks slowly discharge synthesized oil directly into the rolling element track, drastically extending maintenance intervals under 24/7 continuous production cycles.
Bearing Parameter | Light Preload (ZF/Z0) | Medium Preload (ZA) | Heavy Preload (ZB) |
Preload Ratio (% C) | 0% - 2% Dynamic Capacity | 3% - 8% Dynamic Capacity | 9% - 13%+ Dynamic Capacity |
System Rigidity | Standard | High Rigidity | Ultra-High Rigidity |
Frictional Drag | Ultra-Low Resistance | Moderate Drag Torque | Higher Driving Torque Required |
Primary Application | Medical Equipment, Semiconductor | Precision Milling, CNC Lathes | Heavy Gantry Mills, Punch Presses |
Linear guide systems are classified primarily by their internal rolling element geometry, dividing into spherical ball systems for high-speed versatility and cylindrical roller systems for maximum structural rigidity.
Selecting between linear ball guides and linear roller guides requires evaluating operational speed, load directionality, structural stiffness requirements, and environmental contamination risks. While ball-type systems offer lower rolling friction torque, higher maximum linear speeds, and superior tolerance to minor mounting surface misalignment, roller-type systems utilize line contact to deliver vastly higher dynamic load ratings and extreme structural rigidity required for heavy metal-cutting operations.
Modern machine builders must evaluate not only rolling element geometry but also raceway contact configurations. The two primary contact configurations are the 2-row Gothic-arch layout and the 4-row Circular-arc layout. Circular-arc configurations in a 45-degree DB (Back-to-Back) or DF (Face-to-Face) arrangement equalize dynamic load capacity in all four primary directions: radial, reverse-radial, and lateral side loads. This multi-directional loading capability allows a single linear guide rail system to handle complex cantilevered moments without requiring auxiliary support tracks.
Furthermore, critical machine axes operating in aggressive environments demand specialized protective surface treatments to prevent raceway flaking and rust formation. Advanced surface protection technologies, such as dense chrome plating and specialized armoring processes, dramatically lower life-cycle replacement costs. In high-contaminant machining environments, choosing a high-performance system like the corrosion resistant golden armor linear guide block provides superior surface hardness and environmental immunity, preventing abrasive particle embedding and extending total system service life under heavy cutting fluid splash zones.
Linear ball guides utilize high-precision steel balls as their primary rolling elements. The contact between each spherical ball and the ground raceway track is theoretically a single point, which expands under elastic load into a small elliptical contact area. This small contact patch minimizes rolling resistance and frictional heat generation, enabling linear velocities exceeding 5 meters per second and accelerations up to 50 m/s⊃2; in high-speed automated machine gantries.
Why do machine designers choose ball guides for high-speed machining centers? The key lies in their self-aligning capabilities and low operational torque. In 4-row DF circular-arc configurations, the internal contact lines converge inward, allowing the bearing block to absorb minor angular misalignments resulting from machine bed thermal expansion or structural flexure without causing binding or catastrophic stress concentrations on the rolling balls.
Linear roller guides replace spherical balls with precision cylindrical rollers. Because a cylinder makes contact with a flat or crowned raceway along a continuous line rather than a point, the contact area under load is significantly larger. This line contact drastically reduces elastic deformation under heavy external force, giving roller guides up to two to three times the structural rigidity of equivalent-sized ball guides.
Why are roller guides highly favored by European heavy-machinery builders? In heavy-duty milling applications involving large-diameter cutters, vibration damping is paramount. The broader contact patch of cylindrical rollers absorbs cutting harmonics and dampens structural chatter, directly improving machined surface finish quality (Ra values) and extending cutting tool insert longevity under interrupted cutting conditions.
Within linear motion assemblies, recirculating ball bearings are housed inside specialized synthetic retainer cages or plastic ball chains. The ball chain retainer keeps adjacent balls separated at fixed intervals, preventing metal-to-metal contact between adjacent balls as they travel through the recirculation circuit. This ball chain technology eliminates high-frequency metallic friction noise, reduces grease degradation, and ensures smooth, whisper-quiet translation.
In high-precision CNC axis applications, ball bearings are manufactured to tight diameter tolerances, often within 0.0005 millimeters. This extreme manufacturing consistency ensures that every single ball within the loaded zone shares the external structural force equally, eliminating localized stress points that could trigger micro-pitting on the linear guide rail raceways.
Linear roller bearing carriages require advanced guiding mechanisms to prevent "roller skewing." Skewing occurs when a cylindrical roller tilts off its parallel alignment axis during recirculation, creating high lateral friction and localized edge stresses. Modern linear roller bearings incorporate precision-molded synthetic cage guides that maintain perfect parallel alignment of every roller as it enters the primary load-bearing zone.
To maximize life expectancy, high-capacity roller bearings utilize "crowned" rollers. The outer ends of each cylindrical roller are ground with a micro-inch radius curve. This microscopic crowning prevents edge stress concentrations at the ends of the roller when the machine axis experiences heavy bending moments, ensuring smooth stress distribution across the entire roller length.
Engineering Property | Linear Ball Guide Systems | Linear Roller Guide Systems |
Contact Geometry | Point Contact (Elliptical under load) | Line Contact (Rectangular under load) |
Dynamic Load Capacity | Standard to High | Very High (Up to 2x - 3x Ball Systems) |
Elastic Deformation (Deflection) | Moderate Elasticity | Extremely Low Deflection (High Rigidity) |
Maximum Speed & Acceleration | Up to 100 m/min (Very High) | Up to 40 - 60 m/min (Moderate to High) |
Frictional Coefficient | 0.0015 - 0.0025 | 0.0025 - 0.0035 |
Vibration Damping Capability | Standard Damping | Superior Damping & Chatter Resistance |
Raceway Contamination Prevention and Seal Inspection: Regularly inspect the front end wiper seals and bottom lip seals on all linear bearing blocks. Fine aluminum chips and quartz-like cast-iron dust can quickly destroy elastomeric seals if cutting fluids dry out and form sticky residue. Always replace torn or worn end seals immediately, and ensure wiper scrapers maintain firm, gap-free contact with the linear guide rail profile.
Linear guides and bearings are critical foundational components utilized across CNC milling machines, precision lathes, and multi-axis machining centers to convert rotary servo motion into rigid, sub-micron linear positioning.
The operational demands placed upon linear guide rails and bearings vary significantly across different industrial machine architectures. While a high-speed vertical machining center requires rapid axis acceleration and low friction to minimize cycle times during contouring operations, a heavy-duty horizontal boring mill demands extreme static load capacity and vibration absorption to handle massive workpieces and heavy multi-pass cuts. Matching the correct bearing size, preload class, and sealing configuration to the specific machine application is essential for optimal performance.
In modern automated manufacturing environments, machine downtime directly impacts operational productivity. Linear guide systems must contend with dynamic multi-directional forces, continuous acceleration spikes, and persistent exposure to aggressive high-pressure cutting fluid sprays. By analyzing axis kinematics, machine structural weight, and peak cutting forces during the initial engineering design phase, machine builders can select linear motion components that maximize machine dynamic stiffness while maintaining smooth motion profile execution over years of operation.
Furthermore, high-performance CNC machinery operating in high-speed, high-duty-cycle factory lines benefits greatly from advanced carriage sealing and corrosion-resistant surface coatings. Incorporating a high performance golden armor sealed bearing carriage ensures that internal rolling elements remain fully isolated from flying metallic shavings and coolants, maintaining consistent positioning accuracy in continuous automated manufacturing environments.
In CNC milling machines, linear guide rails are mounted to the heavy cast-iron beds, columns, and cross-slides along the X, Y, and Z axes. The primary engineering challenge in milling applications is managing high-frequency dynamic cutting forces generated by rotating multi-flute end mills. These dynamic forces induce complex torsional and moment loads upon the bearing blocks supporting the machine table.
Why do vertical CNC mill designs favor 4-row circular-arc linear guide rail layouts? Because as the machine saddle travels to its extreme end-of-stroke position, the weight of the workpiece creates cantilevered moment loads (Mp and My moments). Equal-load-capacity linear ball or roller guides distribute these moment loads evenly across all active rolling element rows, preventing localized stress buildup and preserving linear interpolation accuracy across the full machining envelope.
CNC lathes and turning centers utilize linear guide rails to control the longitudinal (Z-axis) and transverse (X-axis) movements of the tool turret carriage. In turning operations, the linear guide system must absorb steady-state single-direction cutting forces generated as the stationary lathe tool engages revolving metal bar stock, alongside heavy shock loads during interrupted turning cuts.
To resist heavy radial cutting forces in horizontal slant-bed lathes, engineers frequently arrange the X-axis linear guide rail pairs in an asymmetric or angled configuration. Mounting the upper and lower guide rails parallel to the slant-bed angle directs primary cutting reaction forces perpendicularly into the rail structure, maximizing system stiffness and maintaining precise dimensional tolerances on turned diameters.
5-axis CNC machining centers and high-speed gantry mills present the most demanding operational environments for linear motion components. These complex machines combine rapid linear translation (rapid traverse speeds exceeding 60 m/min) with simultaneous multi-axis rotational movement, subjecting linear bearing carriages to high centrifugal dynamics and complex compound moment loads.
In these high-end machining centers, precise linear positioning is monitored via linear optical encoders mounted parallel to the linear guide rail. Thermal growth of the machine structure or linear rail must be controlled. High-end installations utilize hollow-core linear guide rails with internal cooling fluid channels or precision reference surfaces to prevent thermal expansion from skewing positional feedback loops during continuous high-speed operation.
Machine Type | Primary Axis Load Type | Recommended Guide Type | Key Performance Requirement |
CNC Vertical Milling Machine | Dynamic Cutting Forces, Cantilever Moments | 4-Row Ball / Roller Guide (Medium Preload) | High Moment Rigidity & Dynamic Contour Accuracy |
CNC Slant-Bed Lathe | Unidirectional Radial & Axial Cutting Load | Heavy Roller Guide (Heavy Preload) | High Shock Resistance & Radial Rigidity |
5-Axis Machining Center | High Dynamic Acceleration, Multi-Axis Moments | Compact Ball / Roller Guide (Medium Preload) | Low Thermal Growth & High Rapid Velocity |
High-Speed PCB Router / Engraver | Low Structural Load, Ultra-High Cycle Speed | Miniature / Light Ball Guide (Light Preload) | Ultra-Low Starting Friction & High Velocity |
Pre-Operation Lubrication Setup and Viscosity Matching: Never operate new linear bearings directly out of the box without verifying pre-greasing status. Factory-applied preservation oil is anti-rust agent, not operational lubricant. Always inject high-grade lithium-soap synthetic grease (NLGI Grade 2) or specialized ISO VG 68-220 slideway oil through grease nipples prior to initial axis jog commissioning.
CNC linear guide rails and bearings deliver high positioning accuracy, extremely low friction, exceptional dynamic load capacity, and long operational service life in modern industrial machinery.
The wide adoption of precision rolling-element linear guide rails over traditional sliding box-ways represents one of the most significant engineering advancements in modern machine tool development. By replacing boundary-layer fluid sliding friction with rolling element contact, linear guide systems eliminate non-linear stick-slip behavior, drastically reduce servo motor driving power requirements, and enable high-speed machine positioning without thermal runaway.
Furthermore, modern manufacturing techniques allow linear guide rail trackways to be produced in continuous precision lengths up to several meters, with sub-micron pitch errors and exceptional parallel straightness. When combined with modular precision carriage blocks, industrial machine designers can achieve repeatable structural performance, standardized interchangeability, and simplified field maintenance routines without requiring time-consuming manual hand-scraping of machine bed ways.
To maximize these operational advantages in production equipment, incorporating advanced surface protection components is paramount. Utilizing a corrosion resistant golden armor linear motion block within high-duty CNC axes effectively eliminates ambient oxidation, prevents micro-fretting under micro-vibration conditions, and reduces friction-induced wear, ensuring long-term positioning repeatability and optimal machine performance.
Precision linear guide rails and bearings provide exceptional motion straightness, positional accuracy, and sub-micron positioning repeatability. Because rolling friction is nearly independent of sliding speed, the static friction coefficient matches the dynamic friction coefficient almost perfectly. This structural uniformity allows CNC servo systems to execute micro-step increments down to 0.1 micrometers without experiencing "overshoot" or mechanical stick-slip behavior.
How do linear guide rails maintain high precision over millions of motion cycles? Precision grinding of raceways to strict geometric tolerances (ISO Precision Classes P, SP, and UP) ensures that rolling elements experience uniform contact stress along the entire rail length. This uniform stress distribution minimizes localized mechanical wear, maintaining true, uncompromised linear positioning accuracy throughout the service life of the machine tool.
The coefficient of friction for precision rolling linear guide bearings typically ranges from 0.002 to 0.003, compared to 0.05 to 0.10 for conventional bronze or turcite sliding box-ways. This 90%+ reduction in frictional drag dramatically decreases the drive torque required from axis ball screws and linear motors, enabling higher acceleration rates and significantly lower energy consumption during continuous operation.
What is the primary operational benefit of low friction in high-speed machining? Low friction minimizes frictional heat generation at the bearing block interface. In high-speed CNC axes running continuously at 40+ meters per minute, excessive thermal buildup causes local thermal expansion of machine beds, leading to machining dimensional drift. Low-friction rolling guides keep operating temperatures low, preserving machine thermal equilibrium and spatial precision.
Despite their compact physical footprint, modern linear guide rails and bearings exhibit immense dynamic and static load-carrying capabilities in all spatial directions. Advanced computer-aided finite element modeling (FEM) optimizes raceway curvature profiles, allowing rolling elements to distribute heavy external loads evenly across multiple contact points or lines inside the bearing carriage block.
Why do 4-row circular-arc linear guide rails handle equal dynamic loads in radial, reverse-radial, and lateral directions? The internal raceways are oriented at precise 45-degree contact angles relative to the vertical axis. This symmetrical layout ensures that whether the machine carriage is subjected to downward forces from heavy workpieces, upward forces during inverted mounting, or side loads during aggressive cutting, the bearing assembly maintains identical structural stiffness and dynamic load capacity.
Performance Metric | Traditional Sliding Box-Way | Precision Rolling Linear Guide System |
Coefficient of Friction | 0.05 - 0.15 (High Drag) | 0.002 - 0.003 (Ultra-Low Drag) |
Stick-Slip Behavior | Pronounced (Causes micro-chatter) | Completely Eliminated |
Positioning Repeatability | ± 0.005 - 0.010 mm | ± 0.001 - 0.0001 mm (Sub-Micron) |
Rapid Traverse Speed Limit | 10 - 20 m/min Max | 60 - 100+ m/min High Speed |
Thermal Deformation | High (Significant heat generation) | Negligible Frictional Heat Generation |
Maintenance & Scraping Requirements | Requires manual scraping & oil fitting | Modular bolt-on installation & low maintenance |
Rail Alignment Verification and Torque Sequencing: During structural installation of precision linear guide rails, always utilize a calibrated torque wrench and follow a staggered outward tightening sequence for all mounting bolts. Verify rail straightness using a precision dial indicator or laser interferometer against the ground datum edge. Uneven bolt torque induces localized wavy deformation along raceways, causing premature bearing fatigue and localized preloading spikes.
In summary, linear guide rails and bearings constitute the foundational mechanical framework of modern high-speed, high-precision computer numerical control machinery. By replacing high-drag sliding friction with precision rolling element dynamics, these advanced motion components enable micro-step positioning precision, ultra-low energy consumption, exceptional dynamic load support, and long operational life under demanding industrial conditions. Selecting between linear ball guides for high-speed dynamic versatility and linear roller guides for maximum structural stiffness requires careful evaluation of dynamic cutting loads, axis speeds, vibration damping requirements, and environmental contamination risks.
As industrial automation advances toward higher linear speeds, tighter manufacturing tolerances, and continuous automated production cycles, the structural reliability of linear motion systems becomes increasingly crucial. Machine builders and industrial end-users can maximize equipment uptime, maintain dimensional repeatability, and prevent premature component failure by adopting proper mounting alignment procedures, implementing disciplined lubrication protocols, and integrating high-performance protective technologies—such as corrosion-resistant surface coatings and advanced multi-lip carriage sealing systems.
